Used Drive In Racking for Sale
We stock a range of heavy-duty, second-hand drive-in pallet racking systems available for purchase. Designed for high-density pallet storage, drive-in racking allows forklifts to enter the racking lanes directly, reducing the need for multiple access aisles and helping warehouses store more pallets in the same floor space.
Drive-in racking is a practical choice for businesses that store large volumes of similar products such as:
- Bulk palletised goods
- Seasonal stock
- Non-perishable products
- Manufacturing materials
- Food and drink packaging
- Slow-moving inventory
Overview
Specifications
Compare
Buy & Sell
FAQs

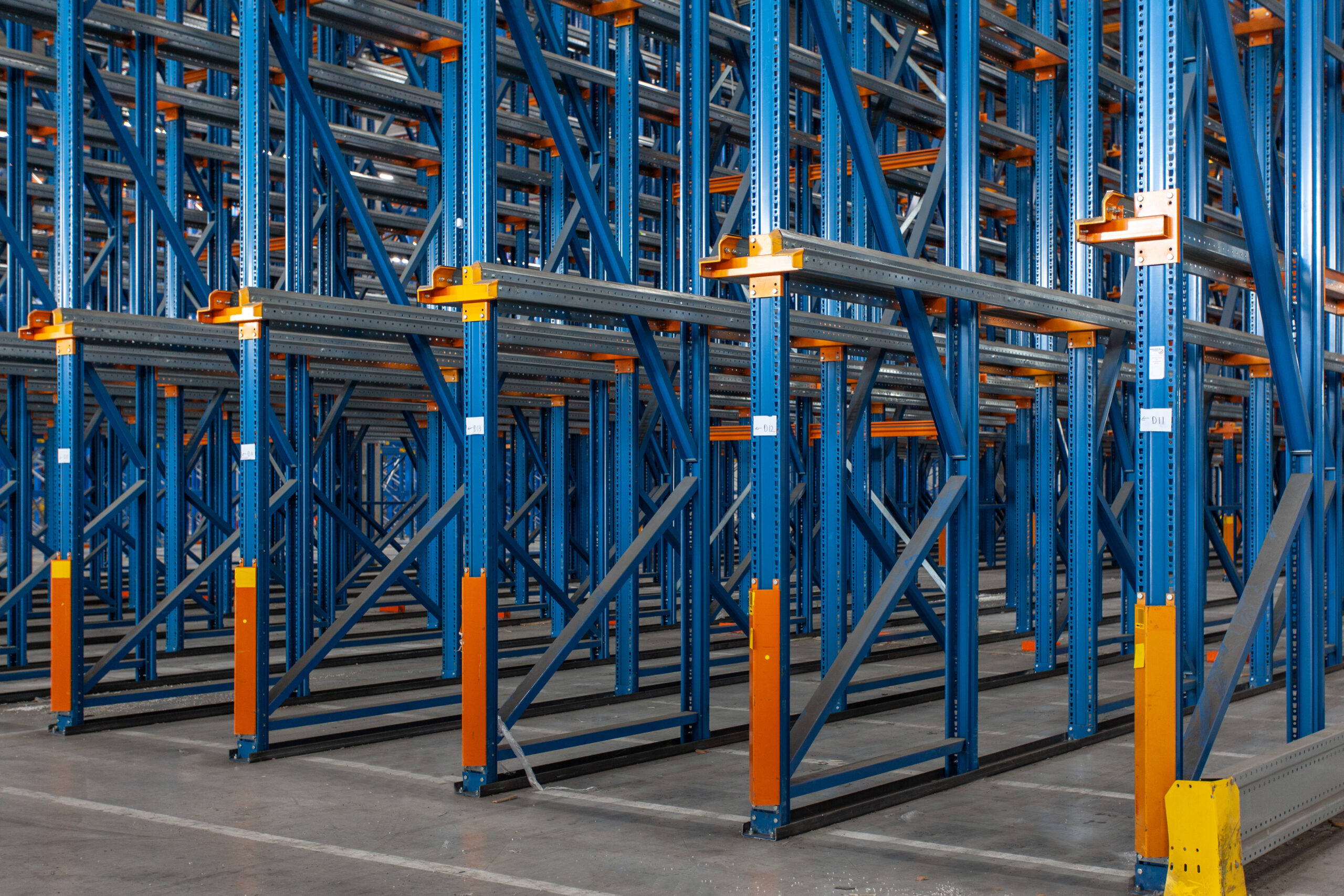

What is Drive-In Pallet Racking?
Drive-in racking is a high-density warehouse storage system that helps businesses store more while reducing the number of aisles needed. Unlike standard adjustable pallet racking, where each pallet is accessed from a front-facing aisle, drive-in racking is made up of deep storage lanes where pallets are stored one behind the other. Forklifts drive directly into these lanes to place or retrieve pallets from support rails.
This makes drive-in racking ideal for warehouses storing large volumes of the same or similar products, where maximum storage capacity is more important than immediate access to every individual pallet.
Because pallets are loaded and removed from the same side in most drive-in systems, stock rotation usually follows a Last In, First Out method. For businesses that need First In, First Out stock movement, drive-through racking may be a more suitable option.
How Drive-In Storage Racks Work
Drive-in racking creates deep pallet storage lanes within the racking structure. Instead of sitting on front-facing beams, pallets are stored on support rails that run from the front to the back of each lane.
Forklifts drive directly into the lanes to load pallets from the back forwards. When stock is removed, the most recently loaded pallet is usually taken first, making drive-in racking best suited to bulk storage and LIFO stock rotation. Key features include:
- Forklift access directly into the racking lanes
- Pallets stored on horizontal support rails
- Multiple pallets stored in depth
- Reduced aisle space for higher storage capacity
- Lanes organised by product type or SKU
- Configurations based on pallet size, warehouse height and forklift access
Common Drive-In Racking System Specifications
Typical drive-in pallet racking specifications include:
- Upright heights ranging from approximately 3,000mm to 8,000mm+
- Lane depths designed to store multiple pallets in depth
- Bay widths configured around pallet size and forklift access
- Heavy-duty pallet support rails
- Floor-mounted guide rails to help protect the racking structure
- Single-entry drive-in layouts for LIFO stock rotation
- Double-entry or drive-through layouts where access is required from both sides
- Load capacities designed around pallet weight, lane depth and beam levels
At Pallet Racking Systems Ltd, we specialise in used drive-in pallet racking, with stock changing regularly. While exact sizes, brands and specifications will vary, the systems we supply are carefully checked to ensure they are suitable for safe warehouse use.
Drive-In Pallet Racking vs Standard Racking
| Feature | Standard Pallet Racking | Drive-In Pallet Racking |
|---|---|---|
| Load type | Mixed SKUs and regular picking | Large volumes of similar stock |
| Storage format | Direct access pallet storage | High-density pallet storage |
| Front access | Every pallet is individually accessible | Pallets are accessed by lane |
| Storage density | Moderate to high | Very high |
| Aisle requirements | Requires more working aisles | Reduces the number of aisles needed |
| Forklift requirements | Forklifts operate from aisles | Forklifts enter the racking lanes |
| Stock rotation | Usually FIFO-friendly | Usually LIFO |
Buy Used Drive-In Warehouse Racking
PLACE YOUR ORDER ONLINE OR GET IN TOUCH TO TELL OUR TEAM HOW WE CAN HELP YOU
WHY CHOOSE SECOND-HAND DRIVE-IN RACKING FROM PALLET RACKING SYSTEMS?
At Pallet Racking Systems Ltd, we supply cost-effective used drive-in racking for warehouses that need to increase pallet capacity without paying the higher cost of a brand-new system.
Our second-hand drive-in pallet racking is carefully inspected and supplied to suit demanding warehouse and industrial environments. Whether you need a complete drive-in system, replacement components or help planning a high-density storage layout, our team can advise on the most suitable options from our current stock.
Current stock levels change daily. Contact us for an up-to-the-minute inventory check on available drive-in racking frames, rails, uprights and components.
Used Drive-In Racking System FAQs
WHAT IS THE DIFFERENCE BETWEEN DRIVE-IN AND DRIVE-THROUGH RACKING?
Drive-in pallet racking is usually loaded and unloaded from the same side, whilst drive-through racking allows forklifts to access the aisle from both sides, front and back.
Because of this drive-in racking typically works on a Last In, First Out basis compared to drive-throughs First In, First Our stock rotation method.
DOES DRIVE-IN RACKING NEED GUIDE RAILS?
Guide rails are commonly used with drive-in racking to help forklift operators entre and move through the lanes safely. They help reduce impact risk and protect the racking structure from forklift damage.
The need for guide rails will depend on the system design, aisle width, forklift type and warehous operation. For busy environments, they are often a considered addition.
CAN YOU INSTALL DRIVE-IN RACKING?
Yes, at Pallet Racking Systems we can install any of the second-hand drive-in racking we supply. Our racking installation process includes assessing your warehouse layout, checking access requirements, planning the lane configuration, 3D CAD drawings and installing the system safely around your operations.
Because drive-in racking is more specialised than standard pallet racking, correct design and installation are essential. We make sure the system is properly configured, anchored, aligned and suitable for safe, efficient use in your warehouse.
Why Choose Heavy-Duty Drive-In Pallet Racking?
Using quality-assured used drive-in racking provides multiple advantages to warehouses like yours, including:
- Cost-effective storage solution – a lower upfront cost compared to new drive-in racking systems
- High-density pallet storage – ideal for maximising warehouse capacity and reducing wasted aisle space
- Suitable for bulk stock – a practical option for large quantities of the same or similar palletised goods
- Improved floor space efficiency – stores more pallets within the same warehouse footprint
- Flexible used stock options – available as complete systems or individual components depending on current availability
- Faster turnaround times – used stock can often be supplied more quickly than new manufactured racking
- Carefully inspected components – frames, rails and uprights are checked before supply
- Nationwide supply and support – nationwide delivery available across Walsall, Birmingham, Wolverhampton, Manchester, Leicester and surrounding areas
This makes used drive-in racking a dependable and cost-effective option for businesses looking to increase pallet storage capacity without expanding their warehouse footprint.
