Used Cantilever Racking for Sale
- Timber and wooden boards
- Steel bars and sections
- Metal sheets
- Plastic pipes and tubing
- PVC and conduit lengths
- Plasterboard and drywall sheets
- Carpet rolls and other oversized or irregularly shaped stock
OVERVIEW
SPECIFICATIONS
VS STANDARD RACKING
BUY & SELL
FAQS
What is Cantilever Pallet Racking?

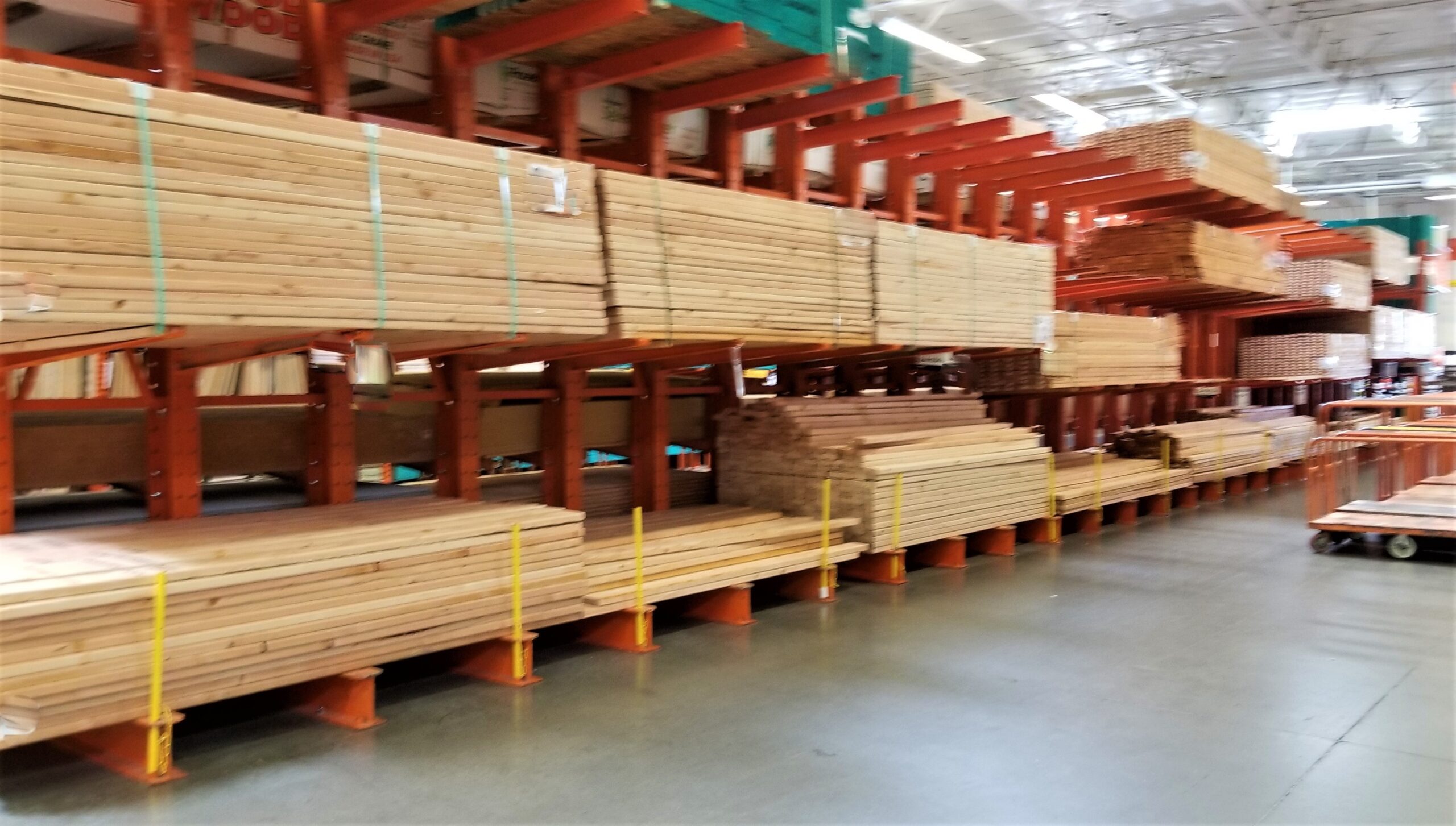

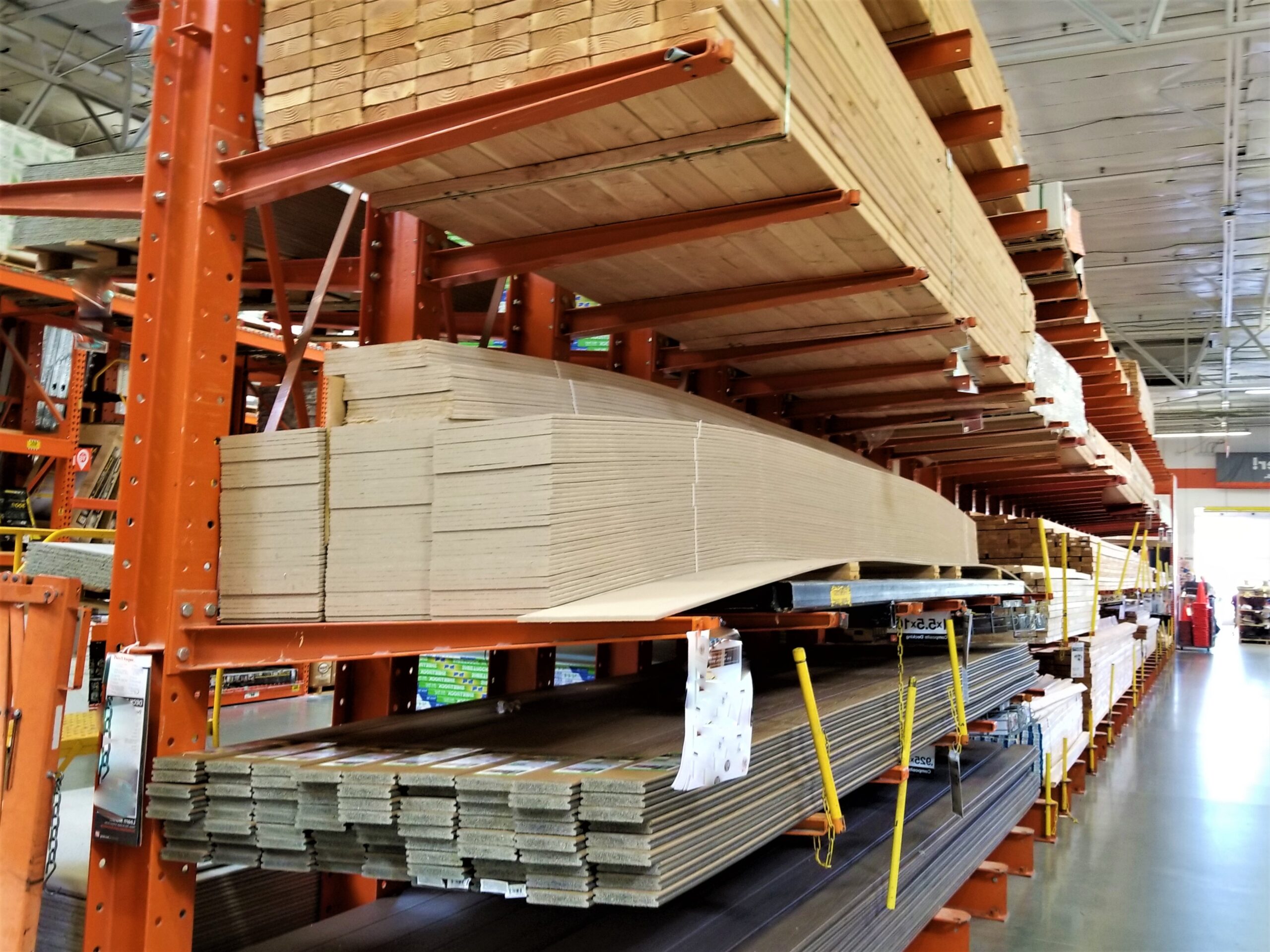

Cantilever pallet racking is a storage system designed for long and awkwardly-shaped items that can’t be stored easily on standard storage racks. It consists of vertical steel columns (uprights) mounted on a base, with horitzonal arms (beams) extending outward to support the load.
Unlike traditional pallet racking, there are no front columns which creates a completely open face for easy loading and unloading. The arms can be adjusted in height to suit different product sizes and load requirements, making the system highly adaptable.
This design allows for safe, efficient storage with clear access to each individual item on your racking, making it ideal for materials thats exceed standard pallet dimensions.
hOW cANTILEVER sTORAGE rACKS wORK
Cantilever racking supports loads by distributing weight along the horizontal arms that are fixed to the vertical upright beams. Each arm transfers the load back through the column and into the base, ensuring stability and structural strength.
- Loads are placed directly onto the horizontal arms, either manually or by forklift
- The absence of front uprights allows for unrestricted front access
- Weight is evenly distributed from the arms through the columns to the base
- Arm levels can be adjusted to suit different product sizes and heights
- Systems can be configured as single-sided (against a wall) or double-sided (for central aisles)
This simple but effective design allows for safe, organised storage with simple accessibility.
Common Cantilever Racking Specifications
Typical cantilever racking specifications include:
- Upright heights ranging from approximately 2,000mm up to 6,000mm+
- Arm lengths typically between 600mm and 1,500mm
- Load capacities from around 250kg to over 1,000kg per arm
- Single-sided (wall-mounted) and double-sided (island) configurations
- Adjustable arm levels to suit different product sizes
- Heavy-duty steel bases designed for stability and safe load distribution
At Pallet Racking Systems Ltd, we specialise in used cantilever racks, with a constantly changing stock. While exact specifications may vary, the systems we supply will often fall within these typical UK standards.
Cantilever Pallet Racking vs Standard Racking
| Feature | Standard Pallet Racking | Cantilever Pallet Racking |
|---|---|---|
| Load type | Palletised goods | Long, bulky and awkward items |
| Storage format | Stored on pallets | Stored directly on arms |
| Front access | Restricted by front uprights | Open-front design (no obstruction) |
| Storage density | High for palletised stock | Efficient for long-lenth items |
| Aisle requirements | Standard aisle spacing | Can reduce aisles for long loads |
| Forklift requirements | Standard forklift | Standard or side-loader (depending on load) |
| Adjustability | Beam levels adjustable | Arms fully adjustable along column |
Buy Used Cantilever Racking
PLACE YOUR ORDER ONLINE OR GET IN TOUCH TO TELL OUR TEAM HOW WE CAN HELP YOU
WHY CHOOSE SECOND-HAND CANTILEVER RACKING FROM PALLET RACKING SYSTEMS?
At Pallet Racking Systems Ltd, we combine cost-effective storage solutions with trusted industry experience. Our used cantilever racking for sale is carefully sourced, inspected and supplied to ensure it meets the demands of your warehouses.
We focus on delivering reliable, high-quality systems without the lead times or price tags of buying new.
Current stock levels change daily. Contact us for an up-to-the-minute inventory check on available cantilever frames and beams.
Used Cantilever Racking FAQs
HOW MUCH WEIGHT CAN A CANTILEVER RACK HOLD?
Load capacities of cantilever racking will depend on the system design including the arm length, column heightm bay spacing and more. Each arm is engineers to carry a defined load with weight transferred through the column into the base for stability. As a general guide:
- 250kg – 500kg per arm: light-duty systems (e.g. plastics, small timber)
- 500kg – 1,000kg per arm: medium-duty applications (e.g. timber packs, pipes)
- 1,000kg – 1,500kg+ per arm: heavy-duty use (e.g. steel sections, dense materials)
- Shorter arm lengths typically allow for higher load capacities
- Upright height and bay spacing influence overall system capacity
We can advise on the correct specification based on your exact load requirements and usage.
DOES CANTILEVER RACKING NEED TO BE BOLTED DOWN?
Yes, cantilever racking should be bolted down to ensure stability and safe operation (for more information on bolting down pallet racking click here).
The base plates are designed to be fixed to a suitable concrete floor using anchor bolts, which prevents movement and ensured loads are properly transferred through the structure.
WHAT'S THE DIFFERENCE BETWEEN SINGLE-SIDED AND DOUBLE-SIDED CANTILEVER RACKING?
Single-sided cantilever racking has arms extending from one side of the upright only and is typically installed against a wall or boundary. This makes it ideal for maximising perimeter space while keeping access from the front.
Double-sided cantilever racking has arms on both sides of the upright, allowing storage on either side. It is usually installed in central aisles, providing access from both directions and making more efficient use of floor space in larger warehouse layouts.
The choice between the two depends on your available space, layout and how you need to access your stock.
WHAT'S THE 1/3 RULE FOR CANTILEVER RACKS?
The “1/3 rule” is a general guideline used to help ensure loads are safely supported on cantilever arms. It means that the stored item should not overhang the end of the arm by more than one-third of the arm’s length.
For example, if you have a 1,200mm arm, the load should ideally not extend more than 400mm beyond the arm. This helps maintain proper load distribution and reduces the risk of bending or overloading the arms.
While this rule is a useful starting point, actual load limits will depend on the system design and manufacturer specifications. It’s always best to base your setup on confirmed load calculations rather than relying solely on general guidelines.
Why Choose Heavy-Duty Used Cantilever Racking?
Using quality-assured used cantilever racking provides multiple advantages:
- Cost-effective solution – a significantly lower upfront cost compared to new systems, without compromising on structural performance
- Designed for long and awkward loads – a practical solution for safely storing timber, steel, pipes, and sheet materials
- Flexible configuration – available as complete systems or individual components to suit your layout or integrate with existing racking
- Immediate availability – faster turnaround times compared to new manufacturing lead times
- Quality assured – all components are carefully inspected for structural integrity, damage, and load suitability before supply
- Nationwide supply with regional expertise – reliable delivery and support across Walsall, Birmingham, Wolverhampton, Manchester, Leicester and surrounding areas
This makes used cantilever racking a dependable, scalable option for businesses looking to maximise storage efficiency while controlling costs.
