Used Live Storage Pallet Racking
- Nationwide Pallet Racking Delivery
- Free on Site Surveys Available
- Card Payments Accepted on All Purchases
- See Photos of Your Purchase Before Placing Your Order
- Payment on Completion – You Don’t Have to Pay Anything Upfront
Buy Used Live Storage Racks
We stock a wide range of second-hand live storage pallet racking systems available for purchase, suited to high-density, fast-moving warehouse storage operations. These systems are ideal for storing and rotating palletised goods utilising a gravity-fed, roller-type movement, being particularly suited for storing:
- Food and beverage products
- FMCG and high-turnover goods
- Cold storage and chilled environments
- Pharmaceutical and healthcare products
- Order picking and dispatch areas
Overview
Specifications
Compare
Buy & Sell
FAQs

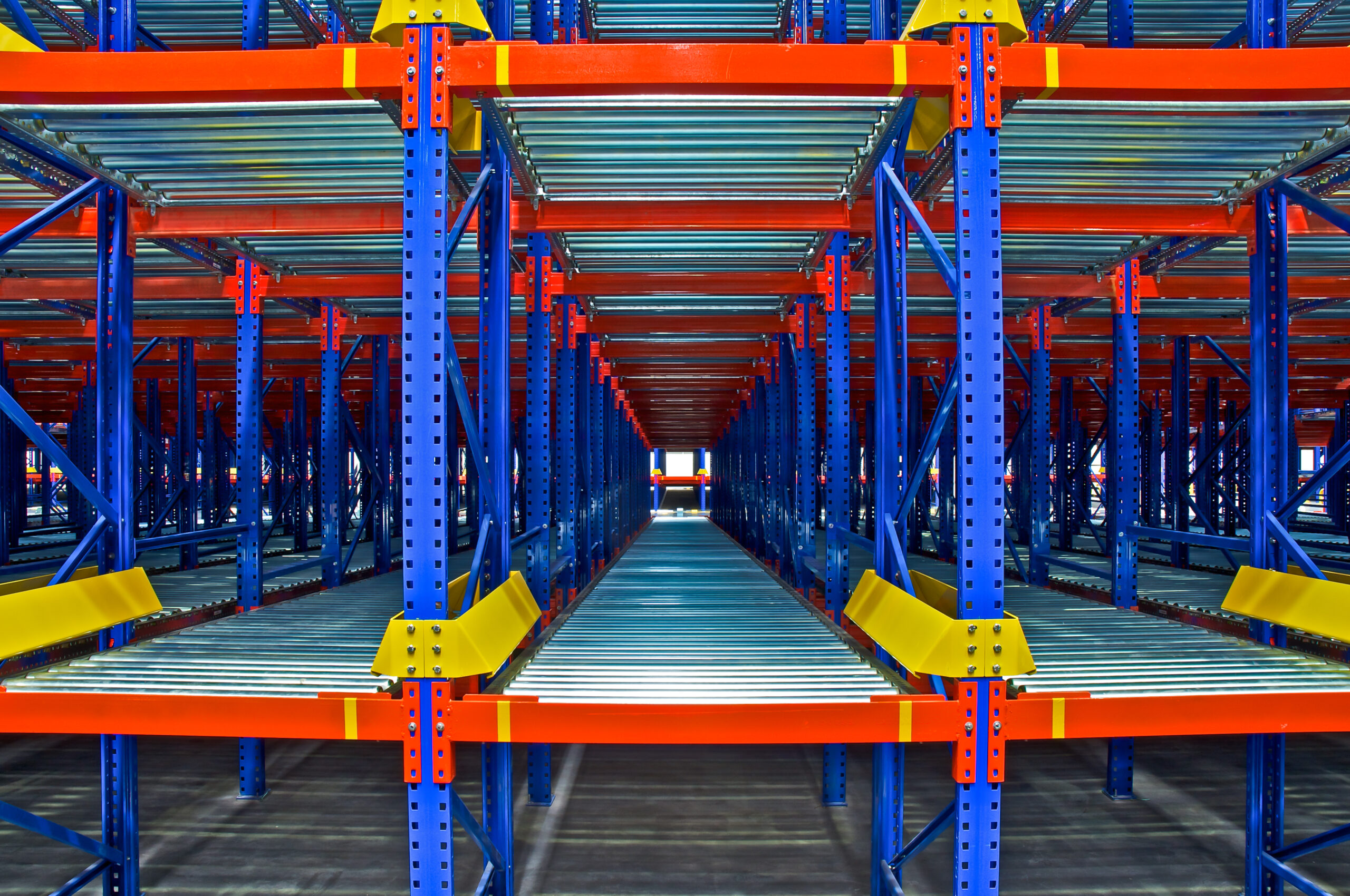

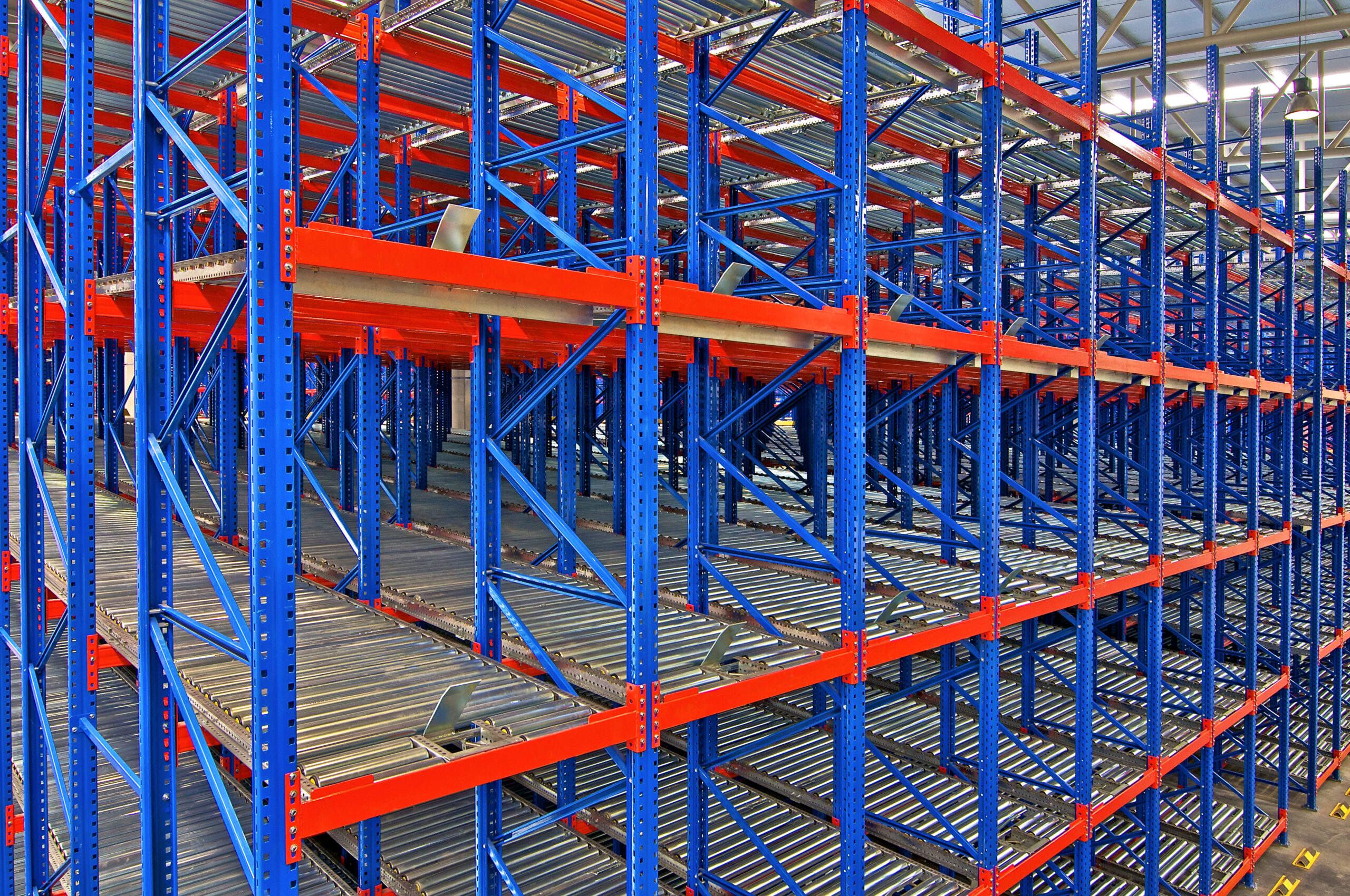

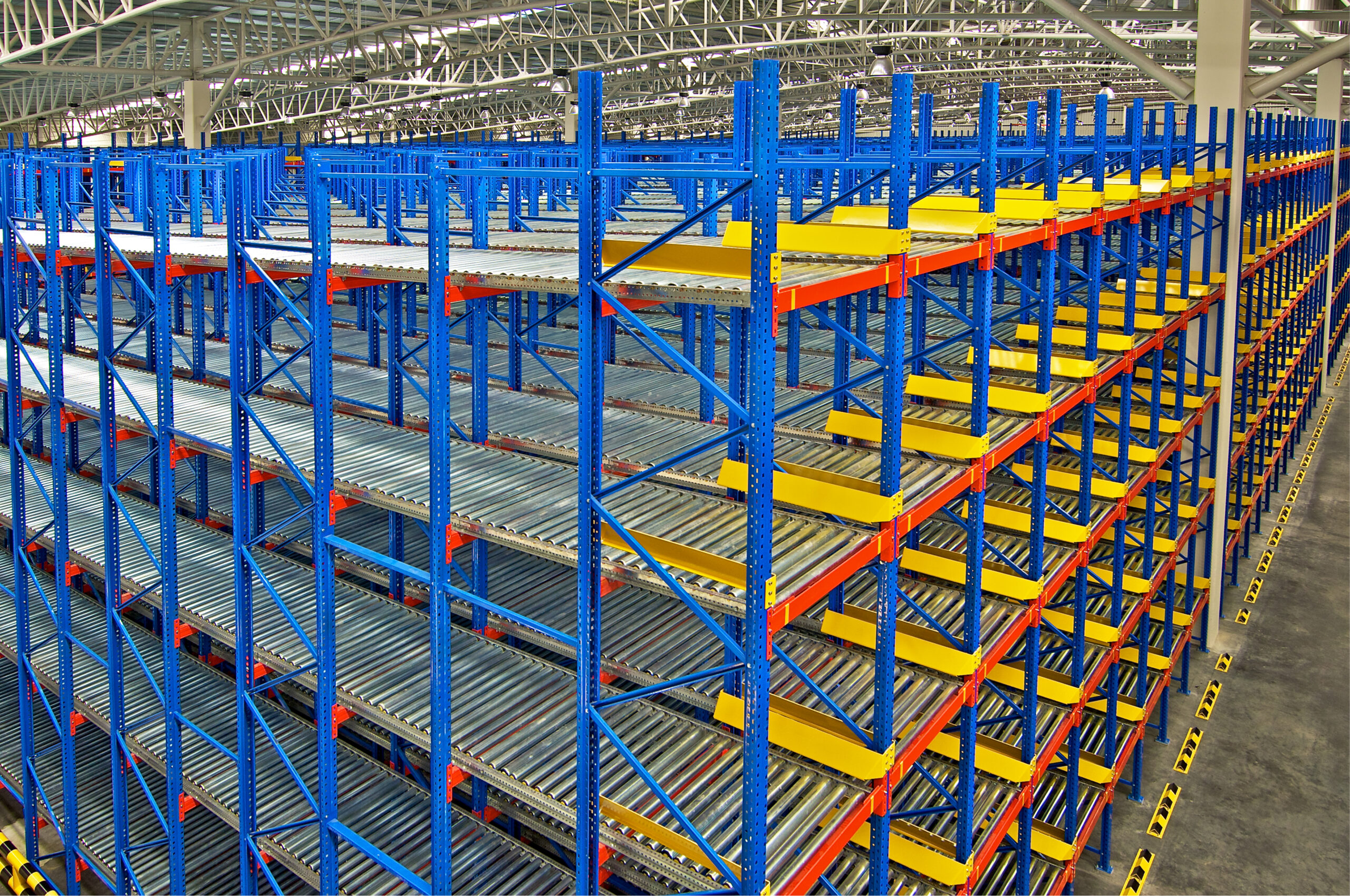

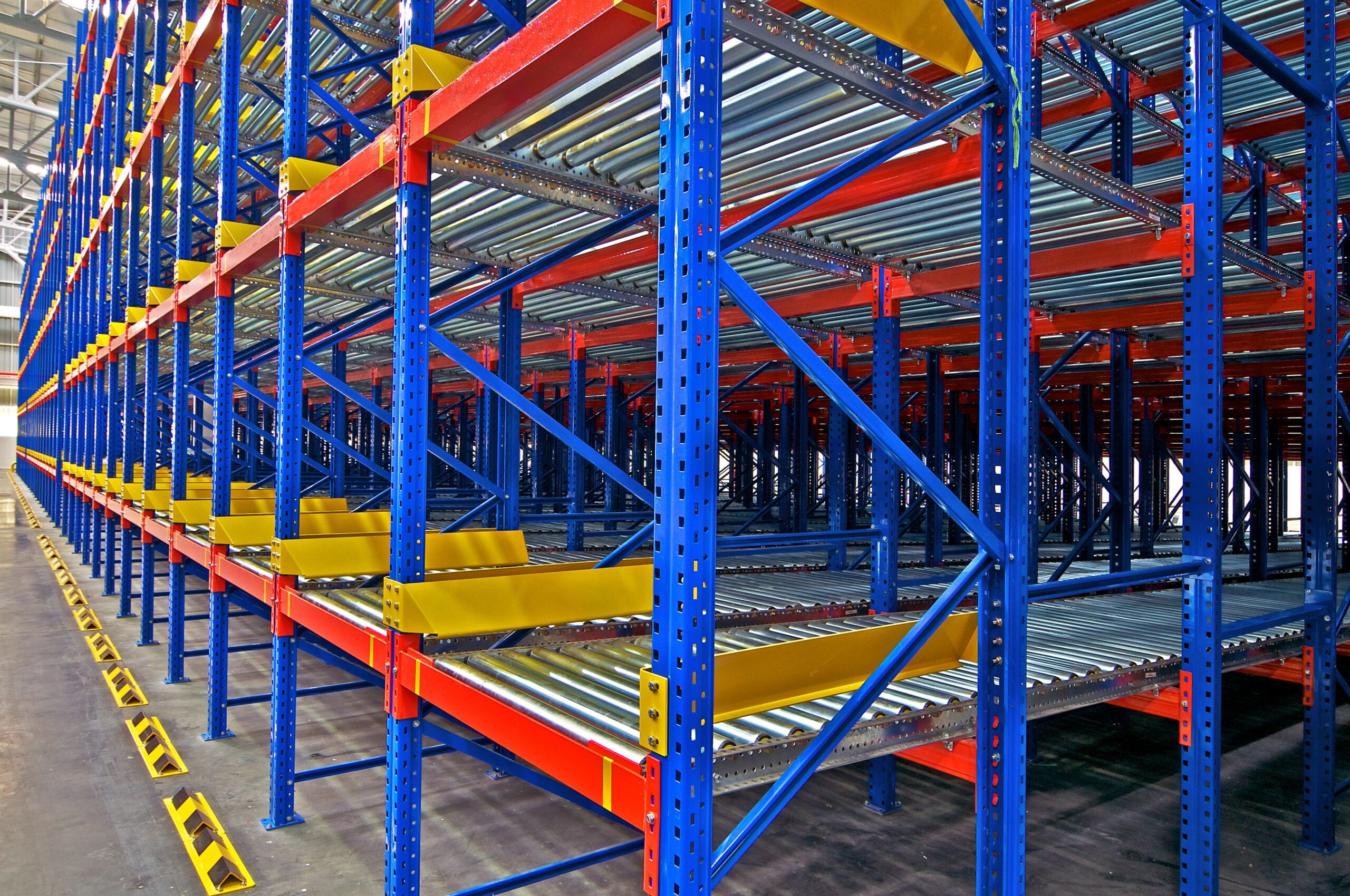

What is Live Storage Pallet Racking?
Live storage pallet racking is a high-density storage system that uses gravity to move pallets from the loading side to the picking side.
Each lane is fitted with slightly inclined roller tracks, allowing pallets to flow smoothly forward as stock is removed. This creates a First-In, First-Out (FIFO) stock rotation system, making it ideal for perishable or time-sensitive goods.
Unlike standard adjustable pallet racking, live storage racks separate loading and picking aisles, improving efficiency and reducing congestion in busy warehouse environments.
This system is widely used in operations where continuous stock movement and fast picking speeds are essential.
How Live Storage Racking Works
Live storage racking operates using gravity-fed roller lanes mounted within a racking structure.
- Pallets are loaded onto roller lanes at the higher (infeed) end
- The lane is set at a slight incline to allow controlled forward movement
- Rollers or wheel beds enable pallets to travel smoothly through the lane
- As the front pallet is removed, the next pallet automatically moves forward
- Braking rollers regulate speed to ensure safe pallet flow
- Separate loading and picking aisles improve workflow efficiency
This system reduces manual handling and forklift travel, helping to optimise both storage density and picking productivity.
Common Live Storage Racking Specifications
Typical live storage pallet racking specifications include:
- Upright heights ranging from approximately 2,500mm up to 10,000mm+
- Lane depths from 2 pallets deep up to 20+ pallets deep
- Roller track systems with steel or composite rollers
- Load capacities typically between 500kg and 1,500kg per pallet position
- Integrated braking rollers for controlled pallet movement
- Adjustable lane gradients to suit load type and weight
- Compatible with standard UK pallet sizes
At Pallet Racking Systems Ltd, we specialise in used live storage racks, with stock changing regularly. Each system is assessed to ensure roller performance, frame integrity and safe load handling, with exact length, height and load capacity specifications varying depending on stock.
Live Storage Pallet Racking vs Standard Racking
| Feature | Live Storage Racking | Adjustable Pallet Racking | Drive-In Racking |
|---|---|---|---|
| Stock rotation | FIFO (automatic) | FIFO (manual) | LIFO |
| Storage density | High | Moderate | Very high |
| Access | Separate load and pick aisles | Direct access to every pallet | Limited |
| Picking speed | Fast, continuous flow | Standard | Slower |
| Best for | High-turnover goods | Mixed inventory | Bulk storage |
| System type | Gravity-fed roller lanes | Static beam system | Lane-based storage |
Buy Used Live Storage Racking
PLACE YOUR ORDER ONLINE OR GET IN TOUCH TO TELL OUR TEAM HOW WE CAN HELP YOU
Why Choose Second-Hand Live Storage Racks from Pallet Racking Systems Ltd?
At Pallet Racking Systems Ltd, we supply cost-effective live storage pallet racking systems nationwide designed to improve warehouse efficiency without the cost of new installations.
Our used pallet live storage racking is thoroughly inspected, with attention given to roller condition and braking systems to ensure safe and consistent operation.
We’ve supported hundreds of UK warehouses in implementing high-performance storage systems who benefit from our rapid lead times and competitive pricing on used storage systems.
Stock levels change daily, so contact our team to check the latest availability of frames, roller tracks, beams and complete live storage racks.
Used Live Storage Racking FAQs
DOES LIVE STORAGE RACKING REQUIRE A SPECIFIC FLOOR TYPE?
Yes, because live storage racking relies on gravity and precise alignment, the floor must be:
- Level and structurally sound
- Capable of supporting concentrated load weights
- Suitable for anchoring racking systems
Uneven floors can affect pallet movement and system performance. A thorough site survey from a professional racking supplier will identify any requirements before installation.
WHAT TYPE OF PALLETS CAN BE USED WITH LIVE STORAGE RACKING?
Live storage systems require good-quality, consistent pallets to function correctly. Damaged pallets or those with irregular bases can affect movement along the rollers and may cause blockages. Compatible pallet types typically therefore include:
- Standard UK pallets (CHEP, Euro or similar)
- Pallets with solid, undamaged bases
- Loads with evenly distributed weight
HOW SAFE IS LIVE STORAGE PALLET RACKING?
When properly installed and maintained, live storage racks are very safe. They can often come equipped with built-in safety features such as:
- Braking rollers to control pallet speed
- End stops to prevent pallets exiting lanes
- Load-rated rollers designed for specific capacities
- Roller loading and unloading zones
Regular inspections and correct usage are important to maintain safe operation. We can advise on best practices and ongoing maintenance.
CAN LIVE STORAGE RACKING BE ADDED TO EXISTING RACKING?
In some cases, yes. However, this depends on your current racking systems and setup.
Live storage systems are typically purpose-built as they require specific frame configurations and gravity-reliant positioning, as well as dedicated loading and picking aisles.
However, existing adjustable racking may be repurposed or integrated in certain layouts. We can assess compatibility during a survey.
Why Choose Used Live Storage Pallet Racking?
Investing in our used live storage pallet racking offers several key advantages:
- Improved stock rotation – automatic FIFO flow reduces waste and improves inventory accuracy
- Increased picking efficiency – faster order fulfilment with reduced handling time
- High-density storage – maximise space utilisation compared to standard racking
- Reduced labour and forklift movement – gravity-fed system improves workflow
- Cheaper than buying new – significantly lower cost than new live storage installations
- Immediate availability – quicker procurement and installation compared to bespoke manufacturing
- Quality assured – all systems inspected for safety, performance, and durability
- Nationwide delivery and support – serving Walsall, Birmingham, Wolverhampton, Telford, Cannock and beyond
About Pallet Racking Systems
As a well-established pallet racking company with four decades of experience, we are seasoned experts in warehouse racking solutions. Located in Willenhall, we take pride in sourcing and delivering pallet racking throughout the West Midlands and neighboring areas.
If you’re searching for top-tier shelving and racking suppliers, we invite you to visit our facility. Come see how we can help you efficiently tackle your logistical challenges with precision and expertise
